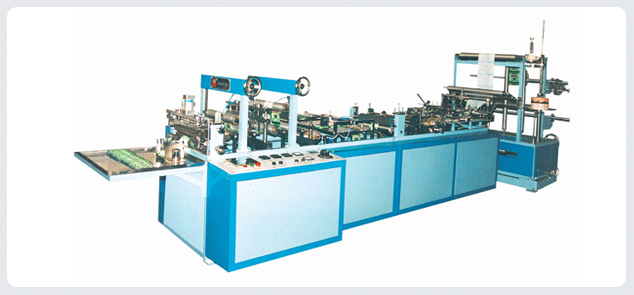

POUCH MAKING MACHINE



Webflex Machines manufactures best quality Pouch Making Machine. WebFlex Machines manufactures automatic centre/slide seal Pouch Making Machine for laminated films Like Polyester + Poly. BOPP + Poly, Paper + Poly , Tripple Laminates.

FEATURES OF POUCH MAKING MACHINE:

1. Sturdy Material Modular Design; No Foundation required.

2. Sleed & Streamilined fabricated frame with ease of accessibility.

3. Unwind unit with mechanical brake.

4. Continuous forming, centre/slide sealing with outfeed synchronised with sealing, cutting section.

5. Bottom sealing unit.

6. Quick setting of cutting knives..

7. Electronic digital temperature controller for sealer .

8. Vertical unwind with pyramid folders for side seal.

9. Electronic counter with buzzer for batch counting & total counting.

10. User friendly process parameter setting console.

11. Imported eye mark scanner/detector for print register detection.

12. Micro Processor based user friendly programmable controls.

13. Inbuild electrical & controls for easy operation.

14. Continuous outfeed unit speed automatically controlled by dancer

TECHNICAL SPECIFICATIONS of POUCH MAKING MACHINE:

Machine	Model	Max. Web Width mm.	Max Pouch Size mm.	Connected Load	Speed/Strokes per min	Weight approx
Centre Seal Pouching Making Machine	CS300	600	300 x 350	4.5KW	Max. 80	1200 Kg
Side Seal Pouching Making Machine	SS300	600	300 x 350	4.5KW	Max. 80	1200 Kg
Centre Cum Seal Pouching Making Machine	CSS300	600	300 x 350	5.5KW	Max. 80	1500 Kg
	SIDE SEAL		CENTRE SEAL		PILLOW SEAL

We look forward to your valuable enquiry of Pouch Making Machine.
